0399500103

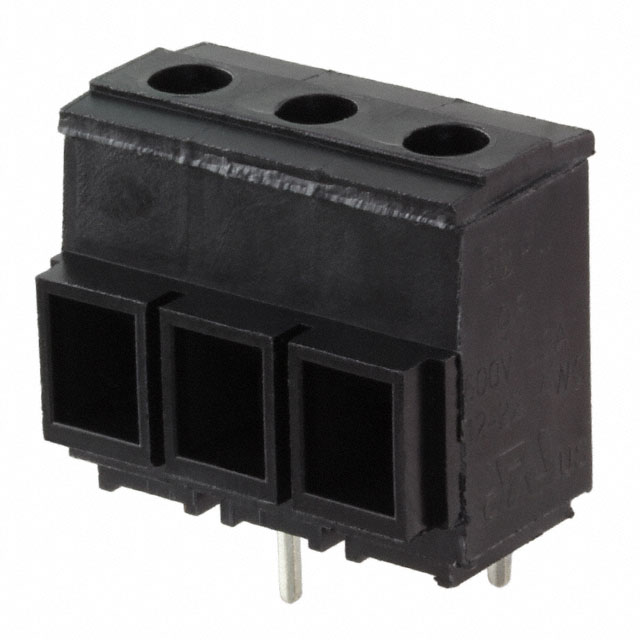

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0399500103 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0399500103 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0399500103 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | NEO 8.0MM HI-PWR 20A S95 STY05 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.378 | $1.877 | $1.785 | $1.62 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.556 | $1.373 | $1.281 | $1.19 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0399500103 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | NEO 8.0MM HI-PWR 20A S95 STY05 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28496 pcs | Data sheet | 039950,54,5201xx Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 12-22 AWG | Voltage | 600V |
| Torque - Screw | 0.56 Nm (5.0 Lb-In) | Series | Eurostyle 39950 |
| Screw Thread | M3 | Screw Material - Plating | Steel - Zinc Chromate |
| Positions Per Level | 3 | Pitch | 0.315" (8.00mm) |
| Packaging | Bulk | Other Names | 0399-50-0103 039950-0103 0399500103-ND 39950-0103 399500103 950503 WM13977 |
| Operating Temperature | -40°C ~ 130°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polybutylene Terephthalate (PBT) |
| Features | - | Detailed Description | 3 Position Wire to Board Terminal Block Horizontal with Board 0.315" (8.00mm) Through Hole |
| Current | 20A | Contact Material - Plating | Brass - Tin Plated |
| Color | Black | Clamp Material - Plating | Brass - Nickel Plated |
