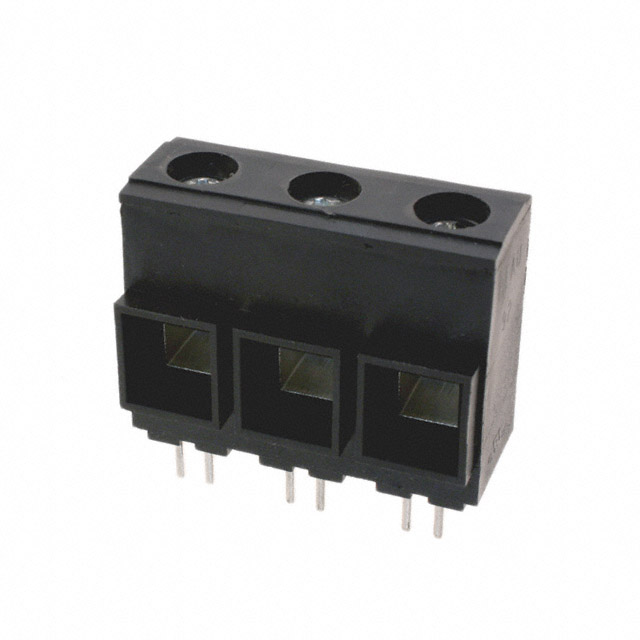

0399200503
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0399200503 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0399200503 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0399200503 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN TERM BLOCK 3POS 15.00MM 90A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.795 | $3.34 | $3.15 | $2.998 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.941 | $2.562 | $2.467 | $2.372 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0399200503 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN TERM BLOCK 3POS 15.00MM 90A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14255 pcs | Data sheet | 39920-0503 |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 3-14 AWG | Voltage | 600V |
| Torque - Screw | 2.71 Nm (24 Lb-In) | Series | Eurostyle 39920 |
| Screw Thread | M5 | Screw Material - Plating | Steel, Stainless - Tin Plated |
| Positions Per Level | 3 | Pitch | 0.591" (15.00mm) |
| Packaging | Bulk | Other Names | 039920-0503 039920-0503-E 0399200503-E 39920-0503 39920-0503-E 399200503 399200503-E 920503-56 WM6051 |
| Operating Temperature | -40°C ~ 130°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic |
| Features | - | Detailed Description | 3 Position Wire to Board Terminal Block Horizontal with Board 0.591" (15.00mm) Through Hole |
| Current | 85A | Contact Material - Plating | Copper - Tin Plated |
| Color | Black | Clamp Material - Plating | Brass - Nickel Plated |
