0395321005

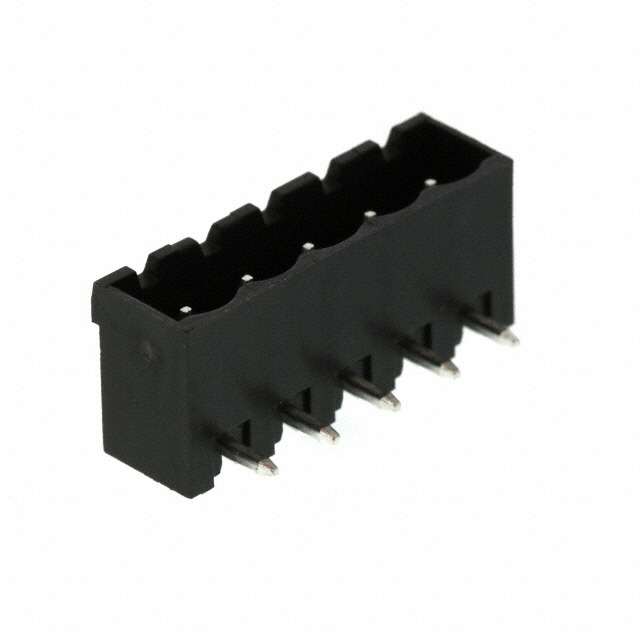

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0395321005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0395321005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0395321005 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK HDR 5POS 90DEG 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.506 | $0.46 | $0.395 | $0.329 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.282 | $0.25 | $0.244 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0395321005 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 5POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91926 pcs | Data sheet | 39532-yyyy |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Eurostyle ESE 39532 | Screw Size | - |
| Positions Per Level | 5 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 039532-1005 039532-1005-E 0395321005-E 39532-1005 39532-1005-E 395321005 395321005-E WM7848 |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 5 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.472" (12.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.150" (3.81mm) |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Black |
