0395300113

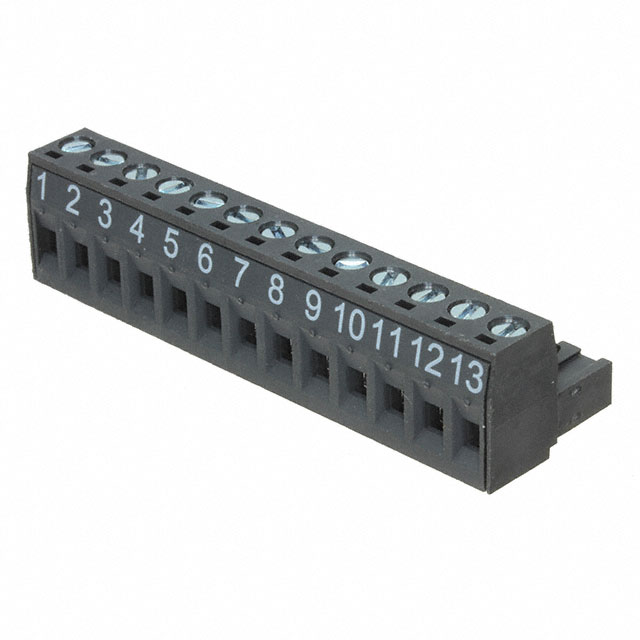

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0395300113 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0395300113 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0395300113 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK PLUG 13POS STR 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.795 | $2.205 | $2.097 | $1.904 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.829 | $1.613 | $1.506 | $1.398 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0395300113 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK PLUG 13POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23465 pcs | Data sheet | 39530-001 |
| Category | Connectors, Interconnects | Wire Strip Length | 5mm |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.56 Nm (5.0 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | Eurostyle ESE 39530 | Screw Size | M3 |
| Positions Per Level | 13 | Plug Wire Entry | 180° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 039530-0113 0395300113-ND 39530-0113 395300113 WM20097 |
Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 13 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.591" (15.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Positions Stamped, Retention Latches (Non-Wire Side) |
| Detailed Description | 13 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
