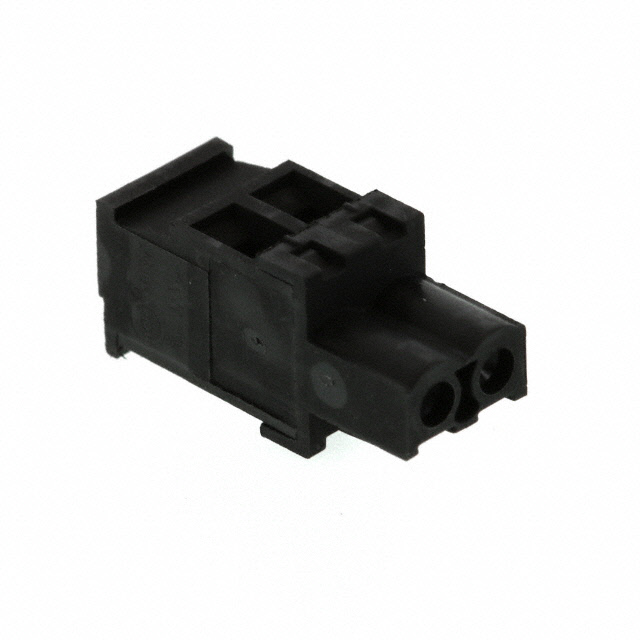

0395232002
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0395232002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0395232002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0395232002 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK PLUG 2POS 270DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.562 | $0.394 | $0.368 | $0.334 | $0.332 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.28 | $0.266 | $0.236 | $0.192 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0395232002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS 270DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111515 pcs | Data sheet | 39523-002 |
| Category | Connectors, Interconnects | Wire Strip Length | 5mm |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.56 Nm (5.0 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | Eurostyle ESE 39523 | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | 270° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 039523-2002 0395232002-ND 39523-2002 395232002 WM20094 |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.020" (25.91mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line) | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Black |
