0394250002

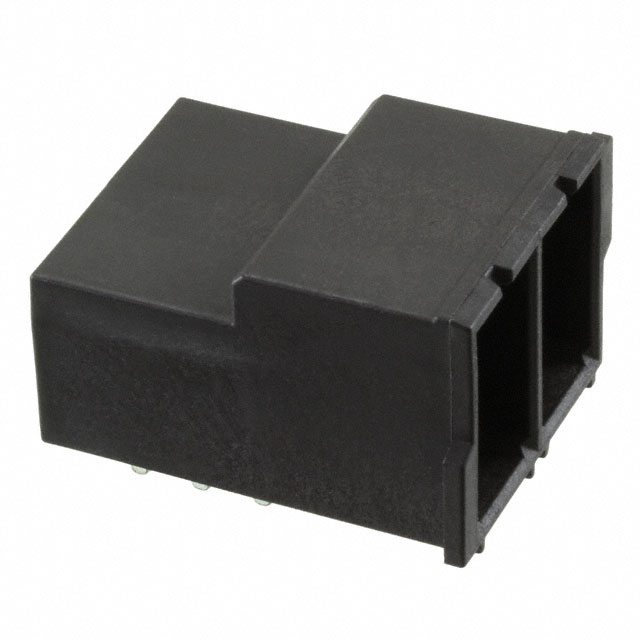

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0394250002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0394250002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0394250002 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK HDR 2POS 90DEG 12MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.889 | $1.44 | $1.349 | $1.199 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.173 | $1.082 | $0.977 | $0.867 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0394250002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 12MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42583 pcs | Data sheet | 03942500xx Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 600V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | EuroMax 39425 | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | - |
| Pitch | 0.472" (12.00mm) | Packaging | Bulk |
| Other Names | 039425-0002 0394250002-ND 39425-0002 394250002 421902 WM13950 |
Operating Temperature | 130°C |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.800" (20.32mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.472" (12.00mm) 90°, Right Angle Through Hole | Current - UL | 85A |
| Current - IEC | - | Contact Tail Length | 0.169" (4.29mm) |
| Contact Mating Finish | Tin | Contact Material | Copper |
| Color | Black |
