0393730005

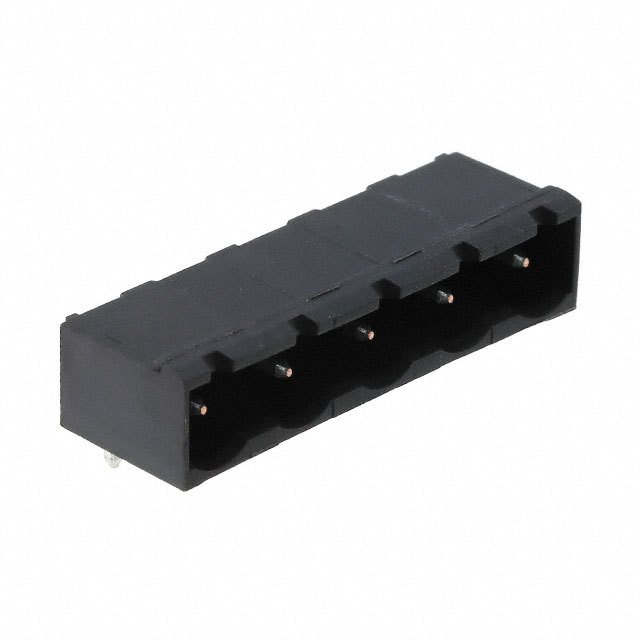

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0393730005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0393730005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0393730005 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK HDR 5POS 90DEG 7.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.575 | $0.403 | $0.376 | $0.341 | $0.34 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.287 | $0.272 | $0.242 | $0.196 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0393730005 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 5POS 90DEG 7.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 106112 pcs | Data sheet | 03937300xx Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Eurostyle 39373 | Screw Size | - |
| Positions Per Level | 5 | Plug Wire Entry | - |
| Pitch | 0.295" (7.50mm) | Packaging | Bulk |
| Other Names | 0393-73-0005 039373-0005 0393730005-ND 371905 393-73-0005 39373-0005 393730005 WM15806 |
Operating Temperature | 110°C |
| Number of Positions | 5 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.329" (8.36mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) 90°, Right Angle Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Black |
