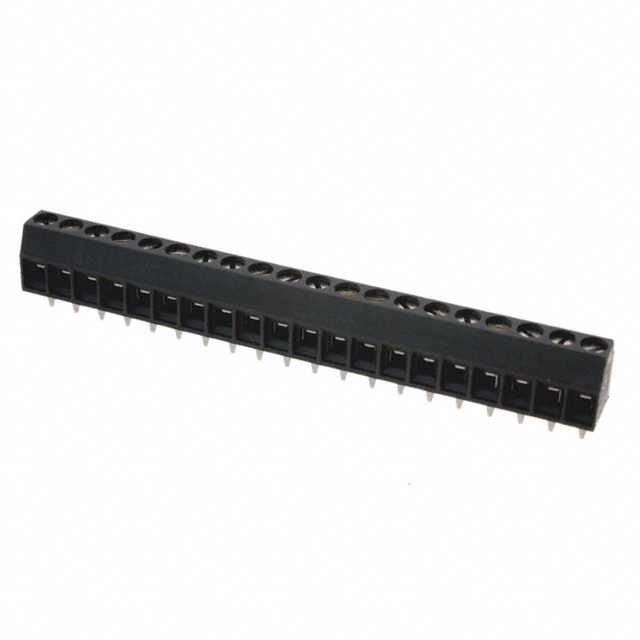

0393570020
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0393570020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0393570020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0393570020 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN TERMINAL BLOCK 20POS 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.221 | $1.692 | $1.585 | $1.409 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.378 | $1.271 | $1.149 | $1.019 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0393570020 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN TERMINAL BLOCK 20POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35353 pcs | Data sheet | 39357-00xx |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 16-28 AWG | Voltage | 300V |
| Torque - Screw | 0.31 Nm (2.7 Lb-In) | Series | Eurostyle 39357 |
| Screw Thread | M3 | Screw Material - Plating | Copper Alloy - Nickel Plated |
| Positions Per Level | 20 | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 039357-0020 039357-0020-E 0393570020-E 350120 39357-0020 39357-0020-E 393570020 393570020-E WM7876 |
| Operating Temperature | -40°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Features | - | Detailed Description | 20 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole |
| Current | 12A | Contact Material - Plating | Copper Alloy - Tin Plated |
| Color | Black | Clamp Material - Plating | Copper Alloy - Nickel Plated |
