0367831201

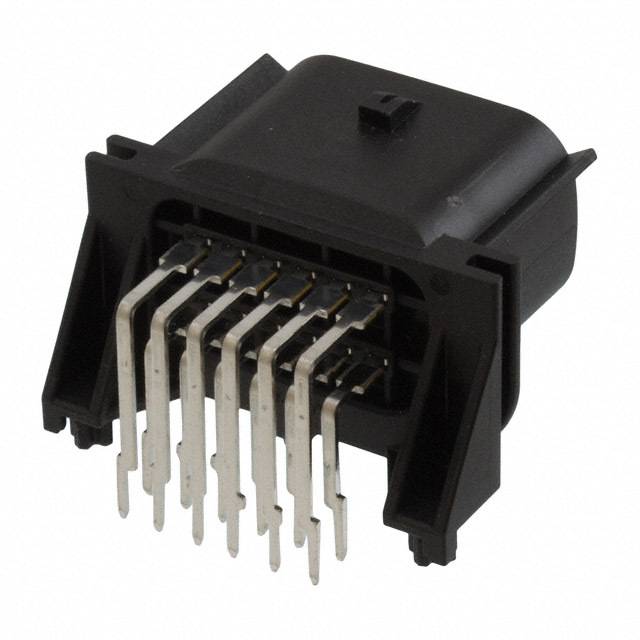

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0367831201 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0367831201 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0367831201 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADR 12POS 3.2MM SEALED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.504 | $0.442 | $0.382 | $0.312 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.277 | $0.243 | $0.231 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0367831201 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADR 12POS 3.2MM SEALED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88015 pcs | Data sheet | 36783yyyy DrawingMX120G Overview |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX120G 36783 |
| Row Spacing - Mating | 0.233" (5.93mm) | Pitch - Mating | 0.126" (3.20mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 036783-1201 36783-1201 367831201 WM9330 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.649" (16.49mm) | Insulation Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 12 position 0.126" (3.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, Industrial, Lighting, Medical |
