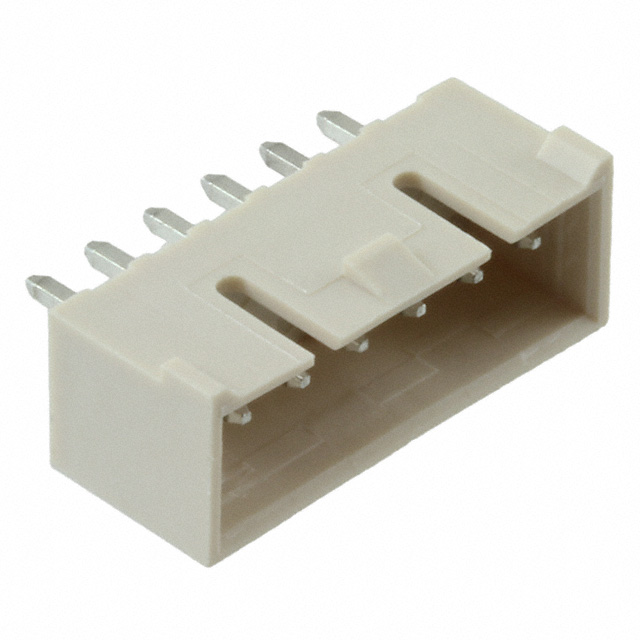

0353120660
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0353120660 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0353120660 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0353120660 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 6POS 2.5MM VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.103 | $0.099 | $0.069 | $0.06 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.05 | $0.043 | $0.04 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0353120660 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 6POS 2.5MM VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 530386 pcs | Data sheet | 353120660 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 35312 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 035312-0660 0353120660-ND 353120-0660 353120660 WM14768 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.276" (7.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 6 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
