0349618340

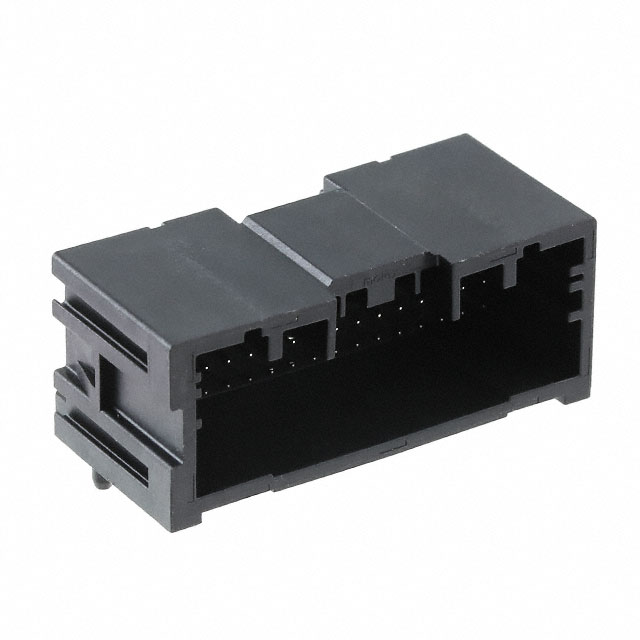

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0349618340 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0349618340 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0349618340 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINI50 RAHDR 34CKT BLK POL A T&R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $1.737 | $1.668 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0349618340 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINI50 RAHDR 34CKT BLK POL A T&R | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18856 pcs | Data sheet | Mini50™Connector System Brochure0349618340 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini50 34961 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | WM16689CT | Operating Temperature | - |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 34 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 0.654" (16.61mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole, Right Angle 34 position |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.108" (2.75mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
