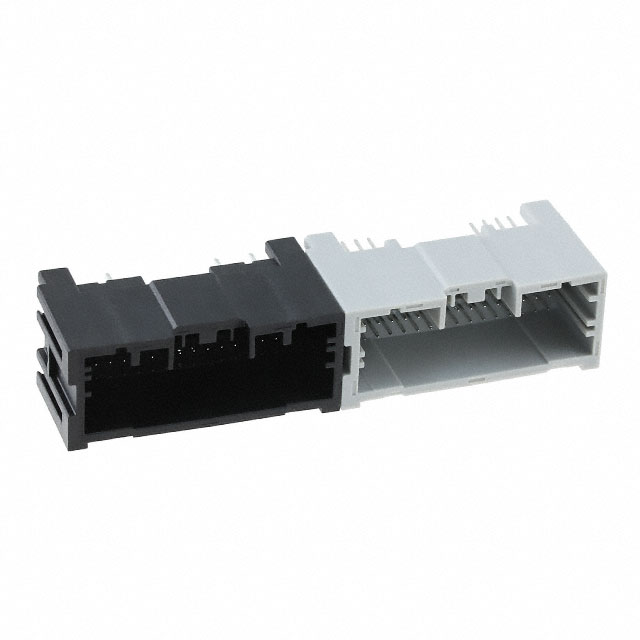

0349601220
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0349601220 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0349601220 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0349601220 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINI50 VHDR 2BAY 72CKT 34A-38B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 400 pcs | 800 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $2.834 | $2.717 | $2.008 | $1.772 | $1.654 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0349601220 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINI50 VHDR 2BAY 72CKT 34A-38B | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23173 pcs | Data sheet | Mini50™Connector System Brochure0349601220 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini50 34960 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 034960-1220 34960-1220 349601220 WM13044 |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 72 (34 + 38) | Mounting Type | Through Hole |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled | Insulation Height | 0.697" (17.70mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole 72 (34 + 38) position | Current Rating | - |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.301" (7.65mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive |
