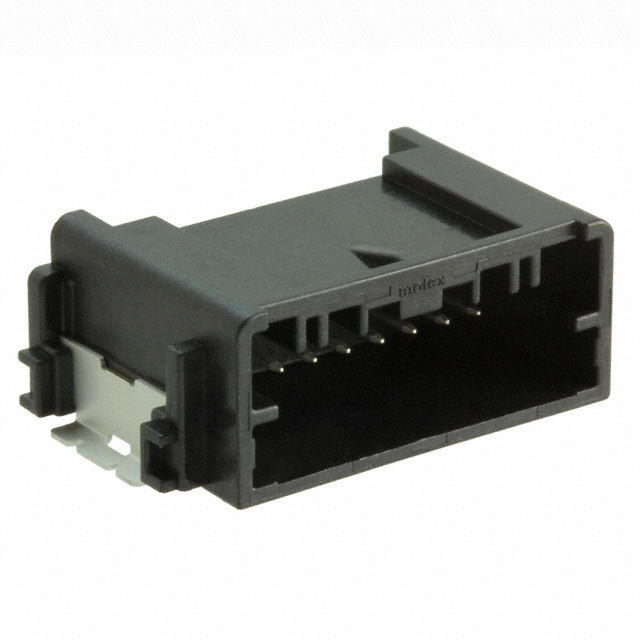

0349126080
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0349126080 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0349126080 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0349126080 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINI50 UNSEALED HEADER, RIGHT A |
| Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.379 | $1.324 | $1.103 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0349126080 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINI50 UNSEALED HEADER, RIGHT A | Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined |
| Quantity Available | 27613 pcs | Data sheet | 0349126080 DrawingMini50 Unsealed Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini50 34912 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | WM16759CT | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 0.372" (9.44mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.218" (5.55mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive |
