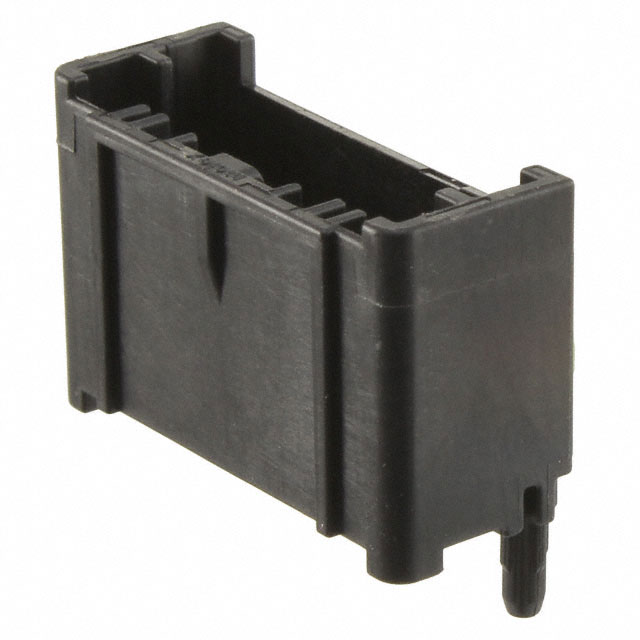

0347920080
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0347920080 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0347920080 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0347920080 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2MM MINI50 VERT HDR 8POS BLACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 90 pcs | 180 pcs | 540 pcs | |
|---|---|---|---|---|---|
| $0.53 | $0.431 | $0.411 | $0.343 | ||
| 1080 pcs | 5040 pcs | 10080 pcs | |||
| $0.294 | $0.26 | $0.254 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0347920080 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2MM MINI50 VERT HDR 8POS BLACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85992 pcs | Data sheet | 3479(1-3) Series Spec034792(9,0)0xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini50 34792 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 034792-0080 34792-0080 347920080 WM8747 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 0.575" (14.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 8 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.051" (1.30mm) | Contact Length - Mating | 0.218" (5.55mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
