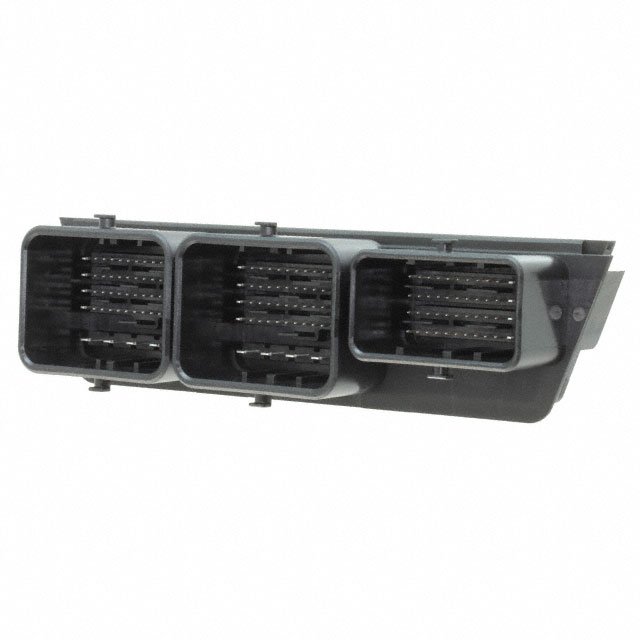

0347630001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0347630001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0347630001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0347630001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CMC HDR ASSY 154 WAY JD MECA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 64 pcs | |
|---|---|---|---|---|---|
| $6.722 | $6.068 | $5.813 | $5.45 | ||
| 128 pcs | 256 pcs | 512 pcs | |||
| $5.268 | $4.978 | $4.832 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0347630001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CMC HDR ASSY 154 WAY JD MECA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6460 pcs | Data sheet | 34763-001 Appl Spec0347630001 Drawing34763-001 Prod Spec31301-304 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CMC 34763 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0347-63-0001 0347630001-ND 347-63-0001 34763-0001 347630001 WM17911 |
Operating Temperature | - |
| Number of Rows | - | Number of Positions Loaded | All |
| Number of Positions | 154 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 1.503" (38.18mm) | Insulation Color | - |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Board Edge, Through Hole, Right Angle 154 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
