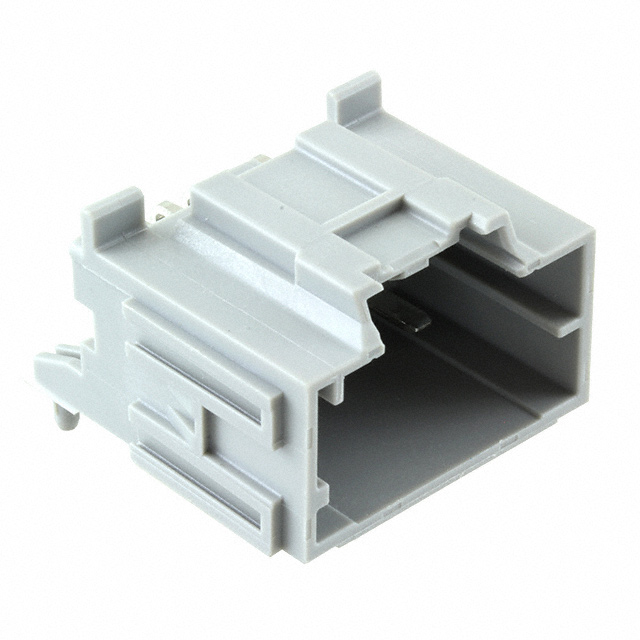

0346960101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0346960101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0346960101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0346960101 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | POWERSTAC RAHDR 10POS GRY POL B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.971 | $0.931 | $0.776 | |||
| 560 pcs | 1120 pcs | 5040 pcs | |||
| $0.659 | $0.562 | $0.504 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0346960101 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | POWERSTAC RAHDR 10POS GRY POL B | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68434 pcs | Data sheet | 0346960101 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Stac64 34696 |
| Row Spacing - Mating | 0.248" (6.30mm) | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0346-96-0101 034696-0101 0346960101-ND 346-96-0101 34696-0101 346960101 WM14546 |
Operating Temperature | -40°C ~ 100°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 (6 + 4 Power) | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 0.868" (22.05mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 10 (6 + 4 Power) position |
| Current Rating | - | Contact Type | Male Blade; Male Pin |
| Contact Shape | Rectangular, Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
