0346900201

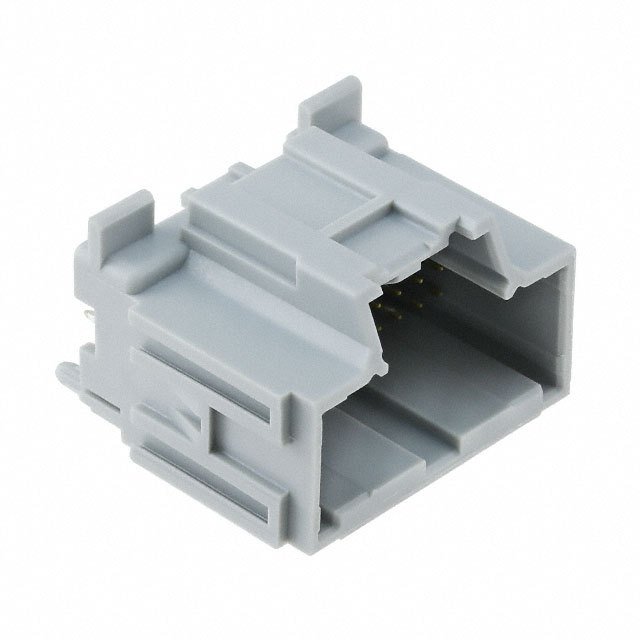

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0346900201 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0346900201 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0346900201 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.54MM VERT HDR 20POS GRAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.899 | $0.817 | $0.70 | |||
| 560 pcs | 1120 pcs | 5040 pcs | |||
| $0.583 | $0.50 | $0.443 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0346900201 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.54MM VERT HDR 20POS GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88331 pcs | Data sheet | 0346900201 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Stac64 34690 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 034690-0201 0346900201-ND 34690-0201 346900201 WM14539 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 0.886" (22.50mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Cartridge Brass |
| Contact Length - Post | 0.117" (2.97mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
