0307004081

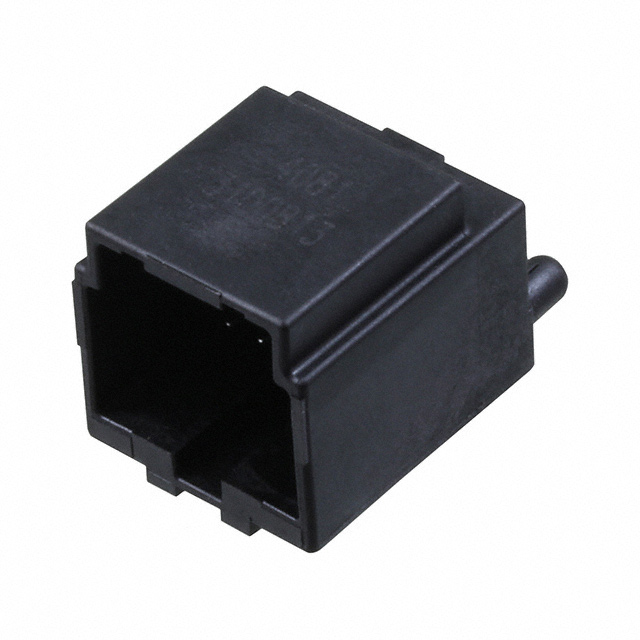

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0307004081 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0307004081 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0307004081 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER VERT 8POS DL BLACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.72 | $0.652 | $0.559 | $0.466 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.399 | $0.354 | $0.346 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0307004081 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER VERT 8POS DL BLACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60619 pcs | Data sheet | 307004081 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | H-DAC 64 30700 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.692" (17.58mm) |
| Other Names | 030700-4081 0307004081-ND 30700-4081 307004-4081 307004081 WM19938 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | 26.22mm | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 0.854" (21.69mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 8 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.145" (3.68mm) | Contact Length - Mating | 0.311" (7.90mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
