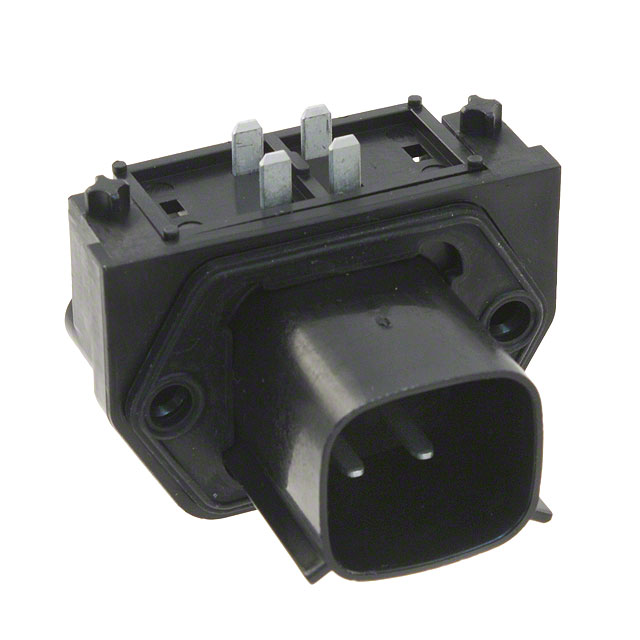

0194370029
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0194370029 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0194370029 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0194370029 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MX150L 4WAY RA PCB HRD ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.019 | $3.655 | $3.564 | $3.29 | ||
| 100 pcs | 320 pcs | 640 pcs | 1280 pcs | ||
| $3.107 | $2.833 | $2.65 | $2.431 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0194370029 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MX150L 4WAY RA PCB HRD ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13137 pcs | Data sheet | 19437-0029MX150L™ Series Assembly Instr |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX150L 19437 |
| Row Spacing - Mating | 0.300" (7.62mm) | Pitch - Mating | 0.300" (7.62mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 019437-0029 19437-0029 194370029 WM4520 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 1.350" (34.30mm) | Insulation Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Board Guide, Mounting Flange |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 4 position 0.300" (7.62mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
