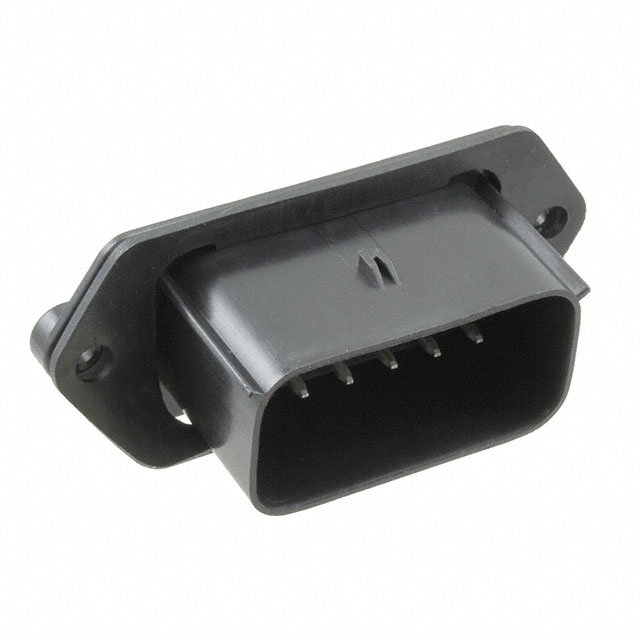

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0194280015 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0194280015 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0194280015 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 12 WAY HEADER VERT SHORT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 240 pcs | 720 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $2.216 | $2.122 | $1.753 | $1.476 | $1.292 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0194280015 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 12 WAY HEADER VERT SHORT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25199 pcs | Data sheet | 194280015MX150L™ Series Assembly Instr |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX150L 19428 |
| Row Spacing - Mating | 0.236" (6.00mm) | Pitch - Mating | 0.230" (5.84mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 019428-0015 0194280015-ND 194280-0015 194280015 WM14530 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 1.562" (39.66mm) | Insulation Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Board Guide, Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Panel Mount, Through Hole 12 position 0.230" (5.84mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
