0191420007

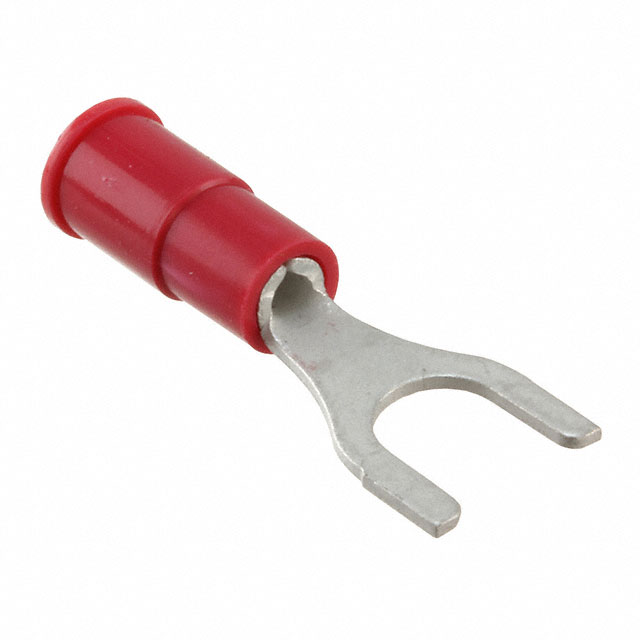

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0191420007 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0191420007 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0191420007 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 18-22AWG #10 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.084 | $0.078 | $0.067 | $0.058 | $0.054 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.048 | $0.046 | $0.037 | $0.034 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0191420007 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SPADE TERM 18-22AWG #10 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 717085 pcs | Data sheet | Insulkrimp Rings, Spades Prod Spec0191420007 |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.316" (8.03mm) | Tongue Inside Opening | 0.198" (5.03mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 10 Stud | Series | InsulKrimp |
| Packaging | Bulk | Other Names | 019142-0007 0191420007-ND 19142-0007 191420007 A-235-10X WM13785 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 3 Weeks |
| Length - Termination | 0.455" (11.56mm) | Length - Ring Center to Termination | 0.303" (7.70mm) |
| Length - Overall | 0.974" (24.74mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.145" (3.68mm) | Insulation | Insulated |
| Features | - | Detailed Description | Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material | Copper | Contact Finish | Electro-Tin |
| Color | Red |
