0191270009

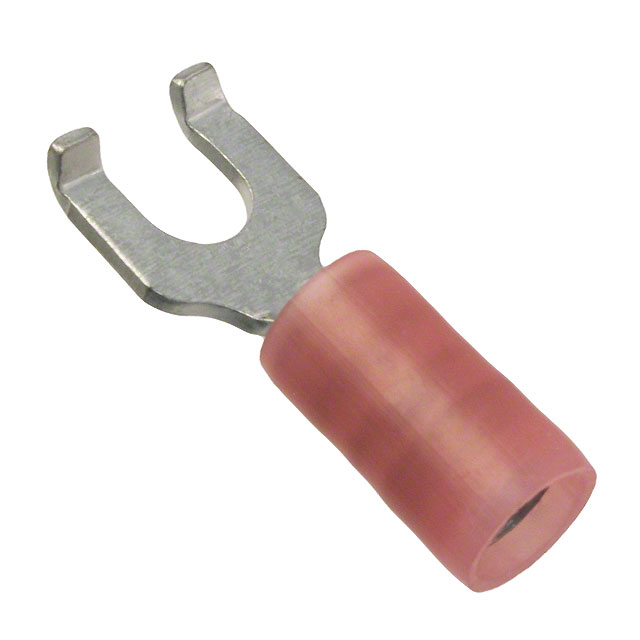

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0191270009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0191270009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0191270009 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 18-22AWG #6 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | ||
|---|---|---|---|---|---|
| $0.086 | $0.08 | $0.078 | |||
| 10500 pcs | 15000 pcs | 37500 pcs | |||
| $0.072 | $0.071 | $0.07 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0191270009 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SPADE TERM 18-22AWG #6 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 297555 pcs | Data sheet | 191270009 |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.301" (7.65mm) | Tongue Inside Opening | 0.146" (3.71mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 6 Stud | Series | Avikrimp |
| Packaging | Tape & Reel (TR) | Other Names | 19127-0009 191270009 AA-815-06T WM3993TR |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Termination | 0.400" (10.16mm) | Length - Ring Center to Termination | 0.207" (5.26mm) |
| Length - Overall | 0.781" (19.84mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.138" (3.51mm) | Insulation | Insulated |
| Features | - | Detailed Description | Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material | Copper | Contact Finish | Electro-Tin |
| Color | Red |
