0191210009

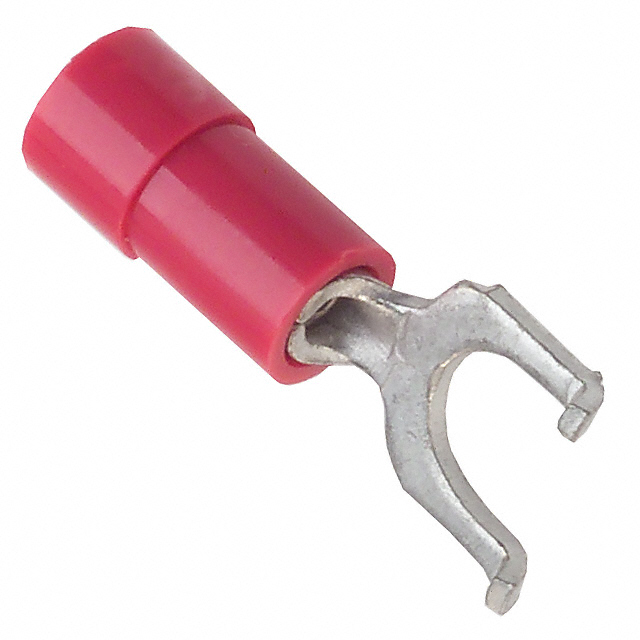

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0191210009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0191210009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0191210009 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 18-22AWG #10 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.102 | $0.098 | $0.084 | $0.071 | $0.068 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.062 | $0.059 | $0.049 | $0.045 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0191210009 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SPADE TERM 18-22AWG #10 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 491274 pcs | Data sheet | 19121-00xx DrawingInsulkrimp Rings, Spades Prod Spec |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.301" (7.65mm) | Tongue Inside Opening | 0.198" (5.03mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 10 Stud | Series | InsulKrimp |
| Packaging | Bulk | Other Names | 019121-0009 019121-0009-C 0191210009-C 191-21-0009-C 19121-0009 19121-0009-C 191210009 191210009-C AA-215-10X WM18338 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Termination | 0.400" (10.16mm) | Length - Ring Center to Termination | 0.207" (5.26mm) |
| Length - Overall | 0.781" (19.84mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.145" (3.68mm) | Insulation | Insulated |
| Features | - | Detailed Description | Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material | Copper | Contact Finish | Electro-Tin |
| Color | Red |
