0039532125

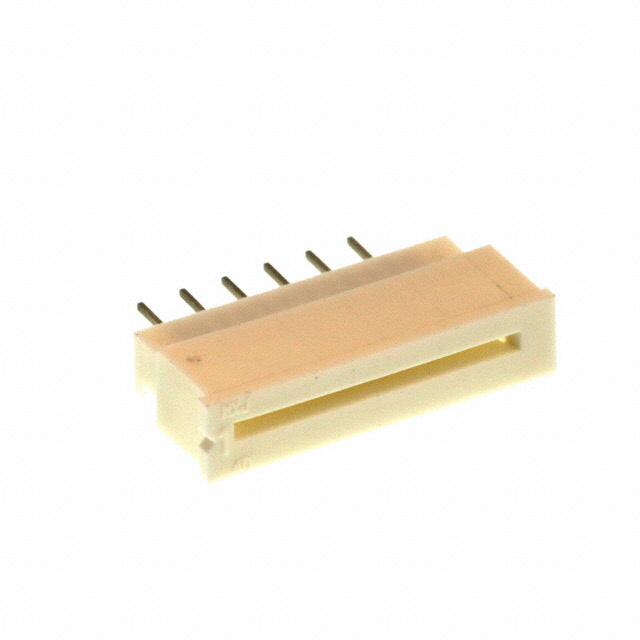

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0039532125 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0039532125 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0039532125 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 12POS 1.25MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.404 | $0.354 | $0.333 | $0.319 | $0.306 | |
| 250 pcs | 900 pcs | 1800 pcs | 2700 pcs | ||
| $0.278 | $0.243 | $0.208 | $0.201 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0039532125 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 12POS 1.25MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 107054 pcs | Data sheet | 39532125 |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Series | 5597 |
| Pitch | 0.049" (1.25mm) | Packaging | Tray |
| Other Names | 39-53-2125 39532125 5597-12CPB7F WM4446 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Housing Color | - |
| Height Above Board | 0.295" (7.50mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 12 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.049" (1.25mm) Through Hole | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 39.4µin (1.00µm) |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | Polybutylene Terephthalate (PBT), Polyester |
| Actuator Color | - |
