0039532035

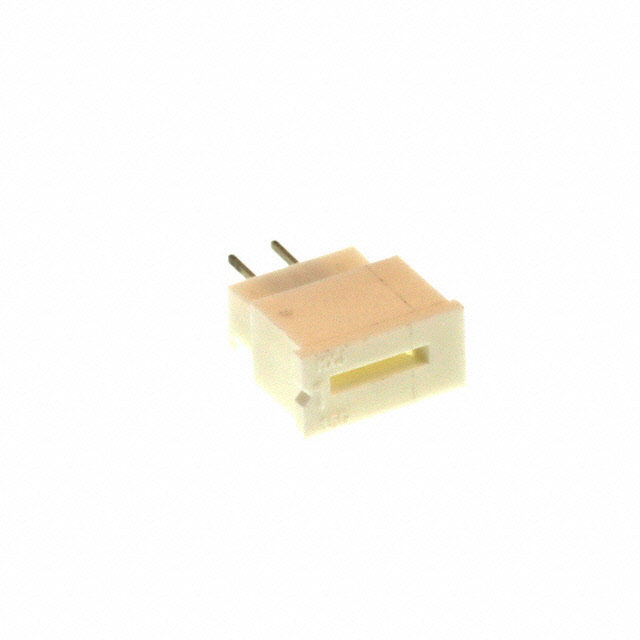

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0039532035 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0039532035 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0039532035 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 3POS 1.25MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.186 | $0.175 | $0.158 | $0.14 | $0.134 | |
| 250 pcs | 500 pcs | 2000 pcs | 4000 pcs | ||
| $0.123 | $0.117 | $0.094 | $0.088 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0039532035 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 3POS 1.25MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 233846 pcs | Data sheet | 0039532035 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Series | 5597 |
| Pitch | 0.049" (1.25mm) | Packaging | Tray |
| Other Names | 0039-53-2035 003953-2035 0039532035-ND 39-53-2035 39532035 5597-03CPB7F WM14522 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 22 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Housing Color | - |
| Height Above Board | 0.295" (7.50mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 3 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.049" (1.25mm) Through Hole | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 39.4µin (1.00µm) |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | Polybutylene Terephthalate (PBT), Polyester |
| Actuator Color | - |
