0039320034

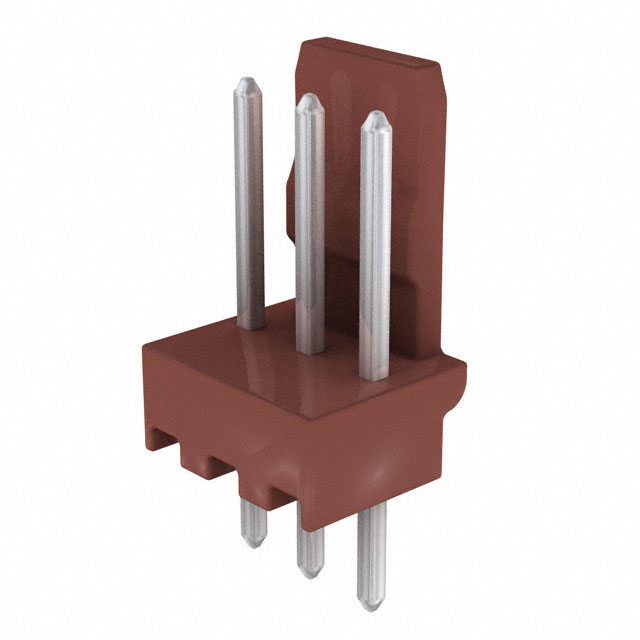

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0039320034 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0039320034 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0039320034 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONNECTOR 2.5MM RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20000 pcs | ||||
|---|---|---|---|---|---|
| $0.117 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0039320034 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONNECTOR 2.5MM RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 205896 pcs | Data sheet | 0039320034 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | KK 5045 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | 0.559" (14.20mm) |
| Other Names | 0039-32-0034 003932-0034 39-32-0034 39320034 5045-03A-RE |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.461" (11.70mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 3 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
