0039310107

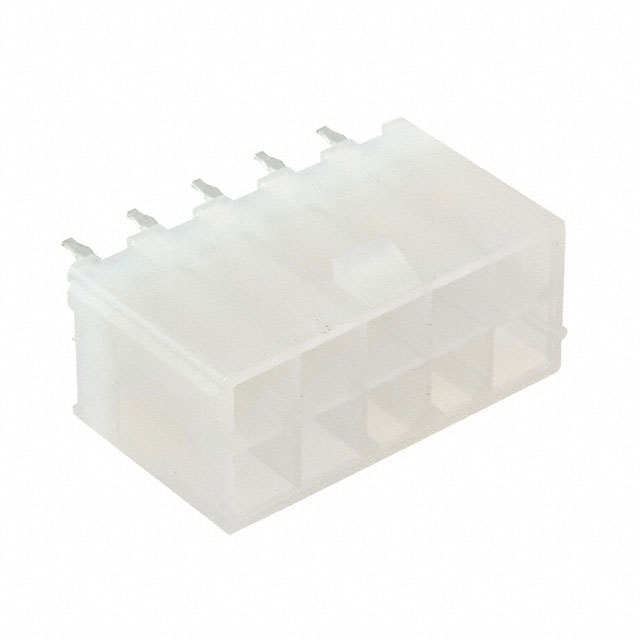

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0039310107 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0039310107 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0039310107 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 5566-10BGS /N/MINI FIT CONN HOUS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.324 | $1.272 | $1.06 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.901 | $0.769 | $0.689 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0039310107 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 5566-10BGS /N/MINI FIT CONN HOUS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57060 pcs | Data sheet | 5556-001 Prod Spec0039310107 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Jr 5566 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0039-31-0107 003931-0107 0039310107-ND 39-31-0107 39310107 5566-10BGS WM14870 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.504" (12.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 10 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
