0039299045

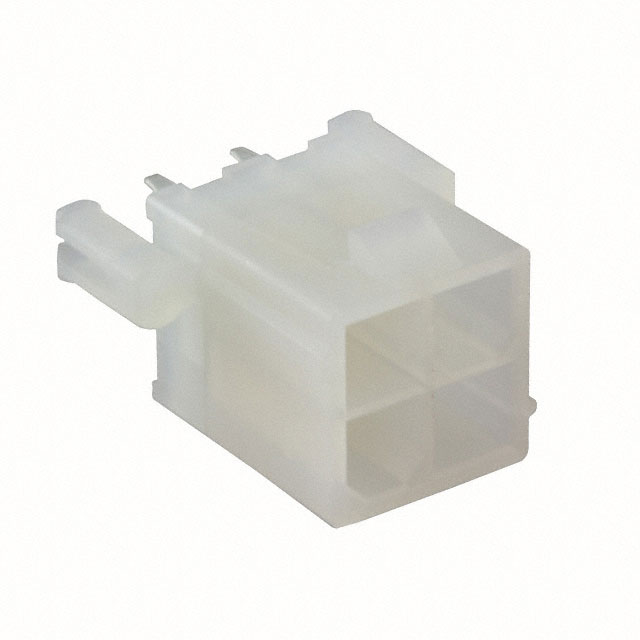

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0039299045 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0039299045 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0039299045 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | A-5566-04AGS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.573 | $0.519 | $0.445 | |||
| 500 pcs | 4800 pcs | 9600 pcs | |||
| $0.37 | $0.282 | $0.275 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0039299045 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | A-5566-04AGS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76193 pcs | Data sheet | 0039299045 Drawing5556-001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Jr 5566 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0039-29-9045 003929-9045 0039299045-ND 39-29-9045 39299045 5566-04A2GS WM14517 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.504" (12.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 4 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
