0039012246

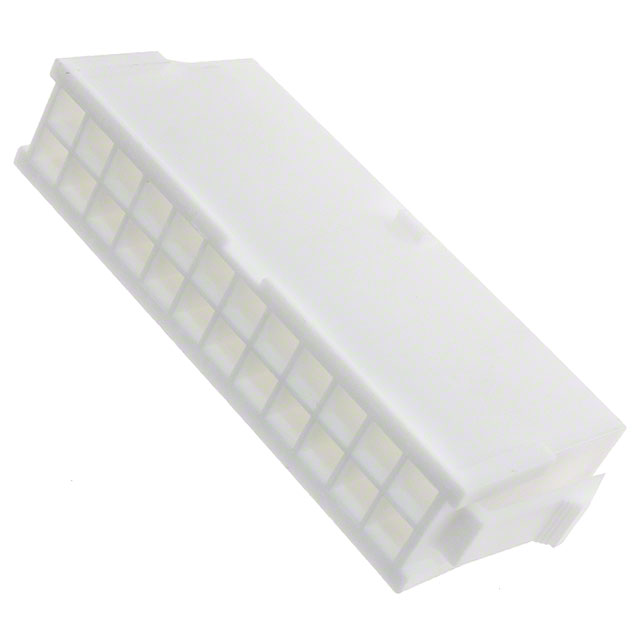

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0039012246 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0039012246 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0039012246 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINI-FIT PLUG HSG 24CKT PANEL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.531 | $0.483 | $0.454 | $0.434 | $0.414 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.375 | $0.345 | $0.296 | $0.276 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0039012246 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINI-FIT PLUG HSG 24CKT PANEL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83346 pcs | Data sheet | 390122465556-001 Prod Spec |
| Category | Connectors, Interconnects | Series | Mini-Fit Jr 5559 |
| Row Spacing | 0.165" (4.20mm) | Pitch | 0.165" (4.20mm) |
| Packaging | Bulk | Other Names | 39-01-2246 39012246 5559-24P-210 WM4370 |
| Number of Rows | 2 | Number of Positions | 24 |
| Note | Contacts Not Included | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 24 Position Rectangular Housing Connector Plug Natural 0.165" (4.20mm) |
| Contact Type | Male Pin | Contact Termination | Crimp |
| Connector Type | Plug | Color | Natural |
