0038001338

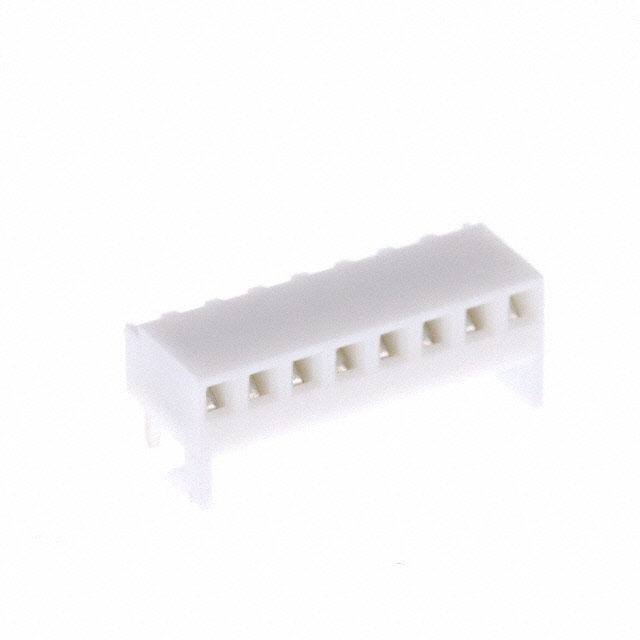

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0038001338 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0038001338 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0038001338 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RCPT .100 RT ANG 8CKT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.531 | $0.482 | $0.453 | $0.433 | $0.413 | |
| 250 pcs | 500 pcs | 1008 pcs | 3024 pcs | ||
| $0.374 | $0.344 | $0.295 | $0.276 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0038001338 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RCPT .100 RT ANG 8CKT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77534 pcs | Data sheet | 10-07 Prod Spec0038001338 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | KK 4455 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 0038-00-1338 38-00-1338 38001338 A-4455-AZ08C(P909) WM2817 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.185" (4.70mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Hooks |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle Connector 0.100" (2.54mm) Board Edge, Through Hole, Right Angle Tin |
| Current Rating | 4A | Contact Type | Non-Gendered |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.132" (3.35mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
