0038000589

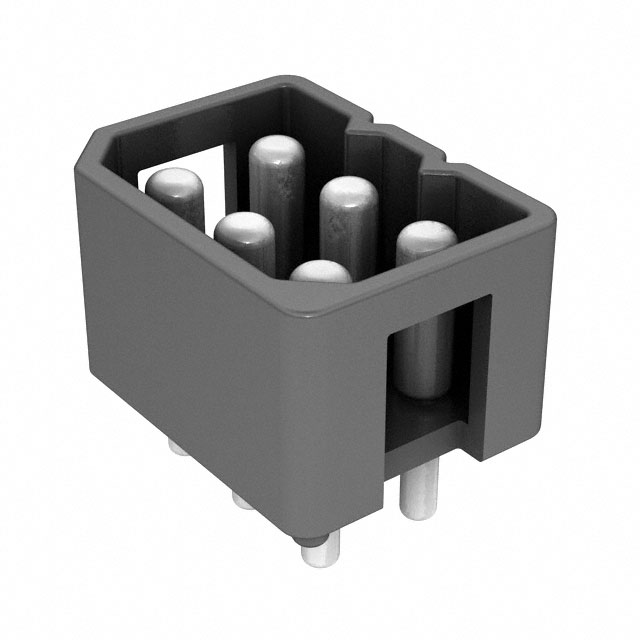

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0038000589 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0038000589 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0038000589 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 093 SHRD PIN SKT HDRS 6POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | ||||
|---|---|---|---|---|---|
| $0.334 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0038000589 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 093 SHRD PIN SKT HDRS 6POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68732 pcs | Data sheet | 0038000589 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3099 |
| Row Spacing - Mating | 0.198" (5.03mm) | Pitch - Mating | 0.198" (5.03mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0038-00-0589 003800-0589 3099-P6C 38-00-0589 38000589 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.421" (10.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 6 position 0.198" (5.03mm) |
| Current Rating | - | Contact Type | Female Socket; Male Pin |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | 0.170" (4.32mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Telecommunications |
