0026645040

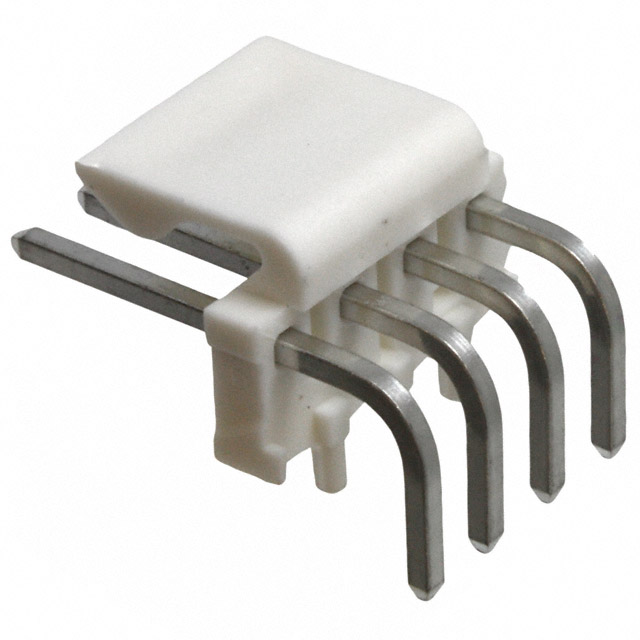

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0026645040 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0026645040 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0026645040 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 156 HDR FRLK RTAN PEG 4CKT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.205 | $0.191 | $0.146 | $0.127 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.105 | $0.092 | $0.086 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0026645040 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 156 HDR FRLK RTAN PEG 4CKT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 230329 pcs | Data sheet | 26645040 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 42492 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 26-64-5040 26645040 42492-0004 WM3916 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.394" (10.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.156" (3.96mm) | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
