Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 0026603060

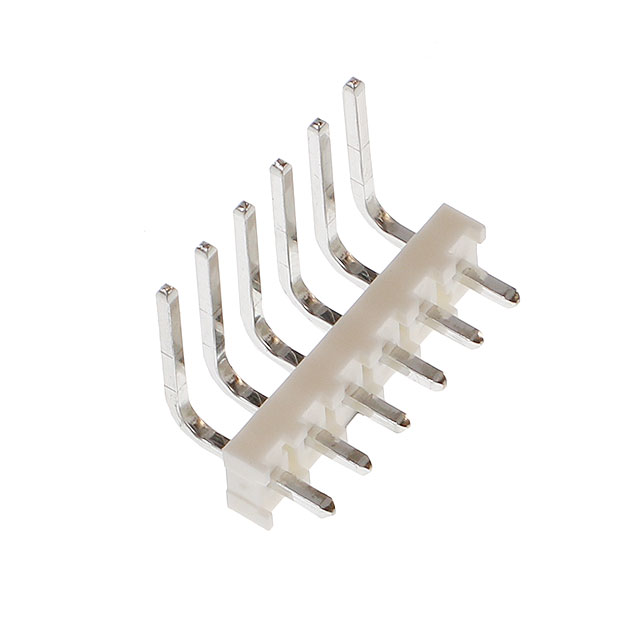

0026603060

0026603060
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0026603060 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 0026603060
Manufacturer Affinity Medical Technologies - a Molex company
Description KK 156 HDR ASSY RTAN TIN 6POS
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 189658 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.263$0.23$0.198$0.162
1000 pcs5000 pcs10000 pcs
$0.144$0.126$0.12

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.263

Product parameter

Part Number 0026603060 Manufacturer Affinity Medical Technologies - a Molex company
Description KK 156 HDR ASSY RTAN TIN 6POS Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 189658 pcs Data sheet 0026603060 Drawing
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Board or Cable
Shrouding Unshrouded Series KK 41772
Row Spacing - Mating - Pitch - Mating 0.156" (3.96mm)
Packaging Bulk Overall Contact Length -
Other Names 0026-60-3060
002660-3060
0026603060-ND
26-60-3060
26603060
41772-0006
WM19520		 Operating Temperature -
Number of Rows 1 Number of Positions Loaded All
Number of Positions 6 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 15 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyester, Glass Filled
Insulation Height 0.130" (3.30mm) Insulation Color Natural
Ingress Protection - Features -
Fastening Type Push-Pull Detailed Description Connector Header Through Hole, Right Angle 6 position 0.156" (3.96mm)
Current Rating - Contact Type Male Pin
Contact Shape Square Contact Material -
Contact Length - Post 0.140" (3.56mm) Contact Length - Mating 0.585" (14.86mm)
Contact Finish Thickness - Post 60.0µin (1.52µm) Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
