0026602150

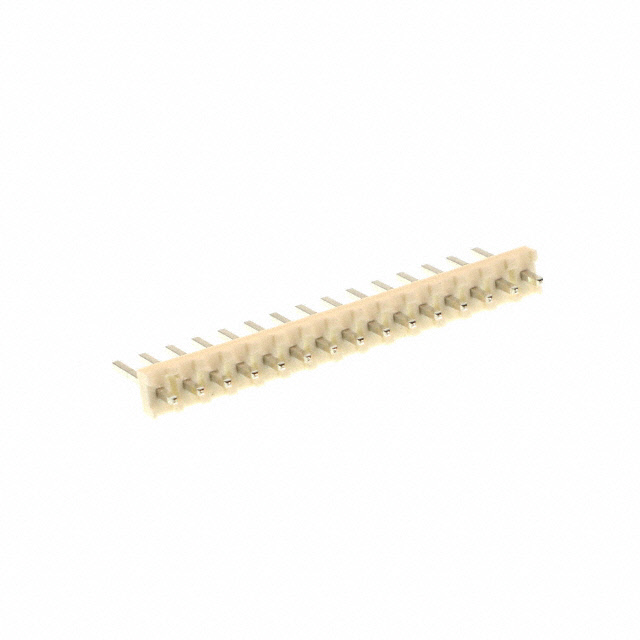

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0026602150 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0026602150 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0026602150 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK 156 HDR ASSY TIN 15POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.791 | $0.719 | $0.617 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.514 | $0.44 | $0.391 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0026602150 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | KK 156 HDR ASSY TIN 15POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88493 pcs | Data sheet | 08-50 Prod Spec0026602150 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 41771 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.720" (18.29mm) |
| Other Names | 0026-60-2150 002660-2150 0026602150-ND 26-60-2150 26602150 41771-0015 WM19517 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.130" (3.30mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 15 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.140" (3.56mm) | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
