0026484042

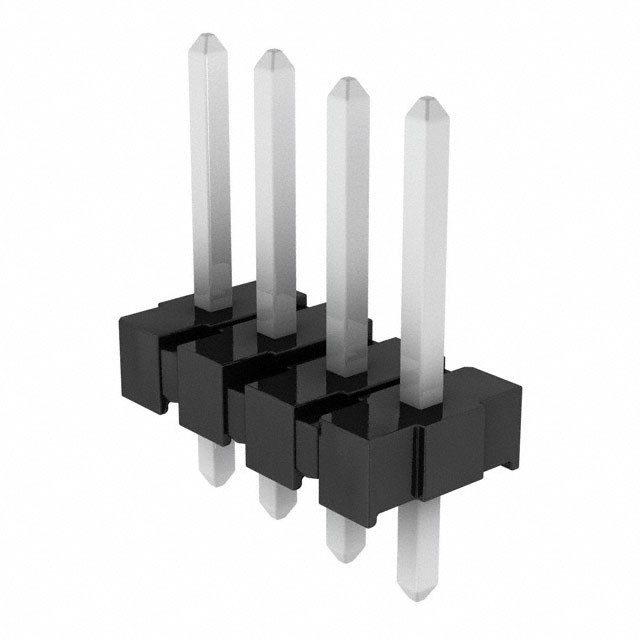

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0026484042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0026484042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0026484042 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK 156 HDR ASSY FLAT BKWY 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4800 pcs | ||||
|---|---|---|---|---|---|
| $0.06 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0026484042 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | KK 156 HDR ASSY FLAT BKWY 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 374430 pcs | Data sheet | 0026484042 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 41661 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 1.200" (30.48mm) |
| Other Names | 0026-48-4042 002648-4042 26-48-4042 26484042 A-41661-A4R197 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.128" (3.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.541" (13.74mm) | Contact Length - Mating | 0.531" (13.50mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
