0026202081

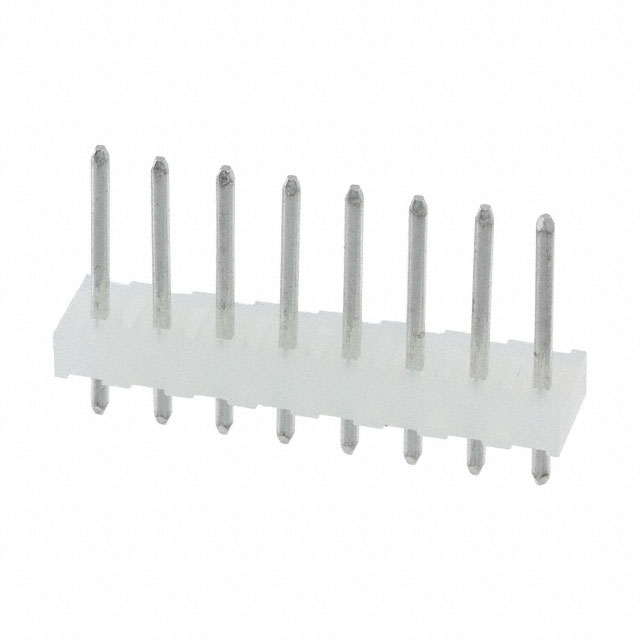

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0026202081 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0026202081 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0026202081 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 3.96MM KK HDR VT RPIN VRA 8POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.569 | $0.517 | $0.443 | $0.369 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.316 | $0.281 | $0.274 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0026202081 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 3.96MM KK HDR VT RPIN VRA 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79559 pcs | Data sheet | 0026202081 Drawing00262x2yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 3192 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.750" (19.05mm) |
| Other Names | 0026-20-2081 002620-2081 0026202081-ND 26-20-2081 26202081 319208A WM13464 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.125" (3.18mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 8 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.175" (4.45mm) | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
