0022566207

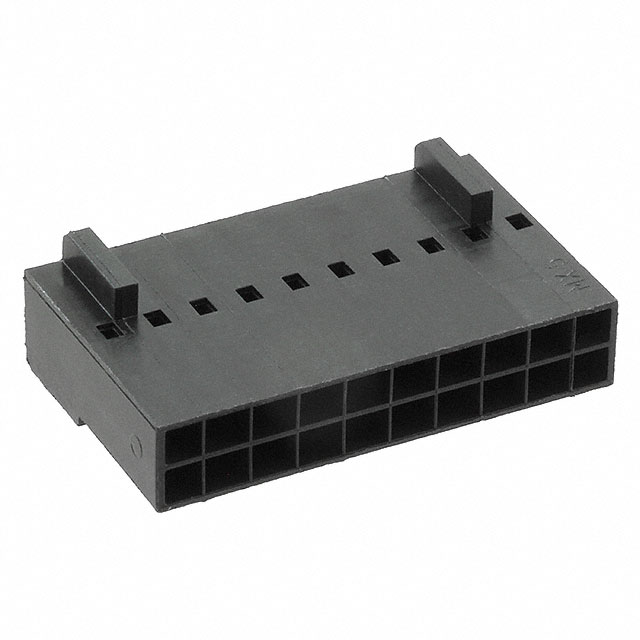

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022566207 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0022566207 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0022566207 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CGRID SL HSG OPT DR 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.518 | $0.469 | $0.441 | $0.421 | $0.402 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.364 | $0.335 | $0.287 | $0.268 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0022566207 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CGRID SL HSG OPT DR 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74771 pcs | Data sheet | 0022566207 DrawingSL Series Prod Spec |
| Category | Connectors, Interconnects | Series | SL 70450 |
| Row Spacing | 0.100" (2.54mm) | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 0022-56-6207 002256-6207 0022566207-ND 22-56-6207 22566207 70450-0258 WM13462 |
| Number of Rows | 2 | Number of Positions | 20 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Fastening Type | - | Detailed Description | 20 Position Rectangular Housing Connector Receptacle Black 0.100" (2.54mm) |
| Contact Type | Female Socket | Contact Termination | Crimp |
| Connector Type | Receptacle | Color | Black |
