Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 0022282179

0022282179

0022282179

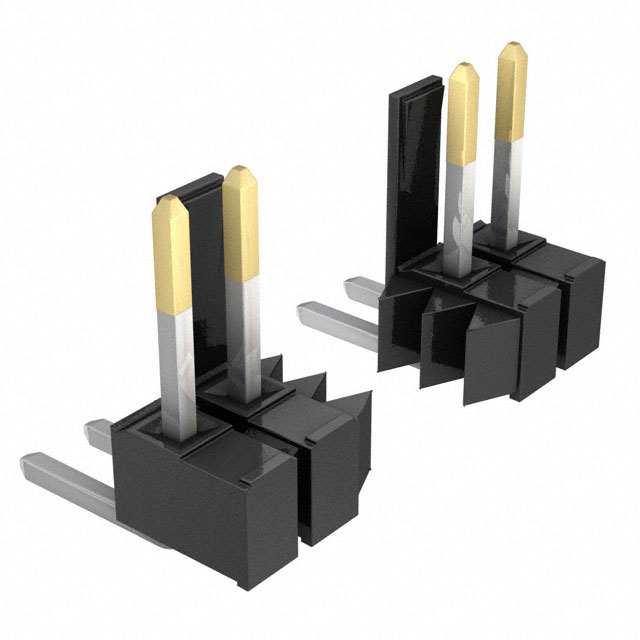

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022282179 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 0022282179
Manufacturer Affinity Medical Technologies - a Molex company
Description KK 100 HDR POL BWR RTAN 17POS
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 65674 pcs
Reference Price
(In US Dollars)		2000 pcs
$0.58

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.58

Product parameter

Part Number 0022282179 Manufacturer Affinity Medical Technologies - a Molex company
Description KK 100 HDR POL BWR RTAN 17POS Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 65674 pcs Data sheet 10-07 Prod Spec0022282179 Drawing
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Board or Cable
Shrouding Shrouded - 1 Wall Series KK 42226
Row Spacing - Mating - Pitch - Mating 0.100" (2.54mm)
Packaging Bulk Overall Contact Length -
Other Names 0022-28-2179
002228-2179
22-28-2179
22282179
42226-0297		 Operating Temperature -
Number of Rows 1 Number of Positions Loaded All
Number of Positions 17 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 9 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon, Glass Filled
Insulation Height 0.284" (7.21mm) Insulation Color Black
Ingress Protection - Features -
Fastening Type Push-Pull Detailed Description Connector Header Through Hole, Right Angle 17 position 0.100" (2.54mm)
Current Rating - Contact Type Male Pin
Contact Shape Square Contact Material -
Contact Length - Post 0.120" (3.05mm) Contact Length - Mating 0.295" (7.49mm)
Contact Finish Thickness - Post 100.0µin (2.54µm) Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin Contact Finish - Mating Gold
Connector Type Header, Breakaway Applications Automotive, General Purpose, Medical, Telecommunications
