0022281140

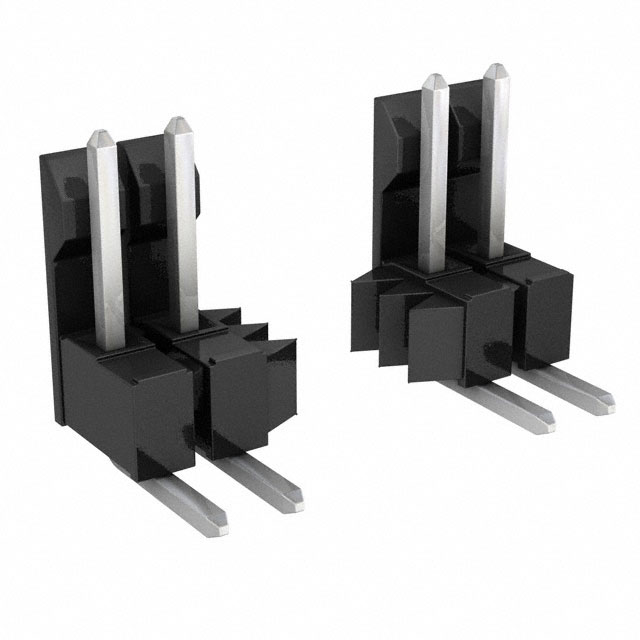

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022281140 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0022281140 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0022281140 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK 100 HDR FRLK RTAN 14POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3200 pcs | ||||
|---|---|---|---|---|---|
| $0.217 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0022281140 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | KK 100 HDR FRLK RTAN 14POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103502 pcs | Data sheet | 10-07 Prod Spec0022281140 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 42228 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0022-28-1140 002228-1140 22-28-1140 22281140 42228-0014 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.284" (7.21mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Medical, Telecommunications |
