0022235091

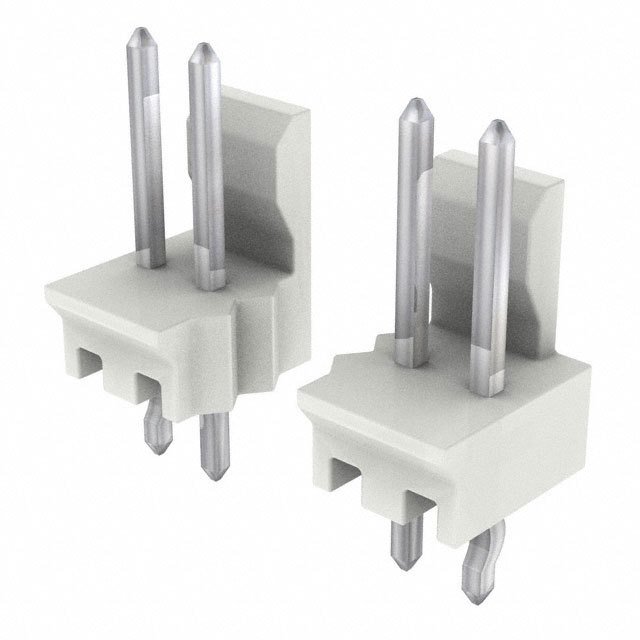

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022235091 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0022235091 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0022235091 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK 100 HDR ASSY FLK KINK 9POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5200 pcs | ||||
|---|---|---|---|---|---|
| $0.094 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0022235091 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | KK 100 HDR ASSY FLK KINK 9POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 215092 pcs | Data sheet | 0022235091 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 43009 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.560" (14.22mm) |
| Other Names | 0022-23-5091 002223-5091 22-23-5091 22235091 A-43009-0018 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.322" (8.18mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 9 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.140" (3.56mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
