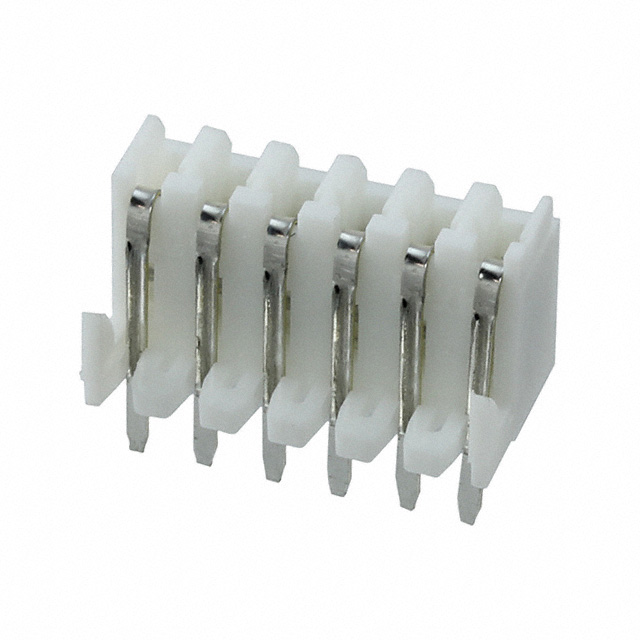

0022142064
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022142064 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0022142064 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0022142064 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 6POS .100 VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.27 | $0.236 | $0.204 | $0.167 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.148 | $0.13 | $0.123 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0022142064 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 6POS .100 VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 176279 pcs | Data sheet | 10-07 Prod Spec22-14-2064 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | KK 4455 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 0022-14-2064 0022-14-2064-P 0022142064-P 22-14-2064 22-14-2064-P 22142064 22142064-P A-4455-BH 06 D(P909) A-4455-BH06D(P909) WM3104 |
Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.311" (7.90mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Hooks |
| Fastening Type | Push-Pull | Detailed Description | 6 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | 2.5A | Contact Type | Non-Gendered |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.132" (3.35mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle, Bottom Entry |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
