0022102052

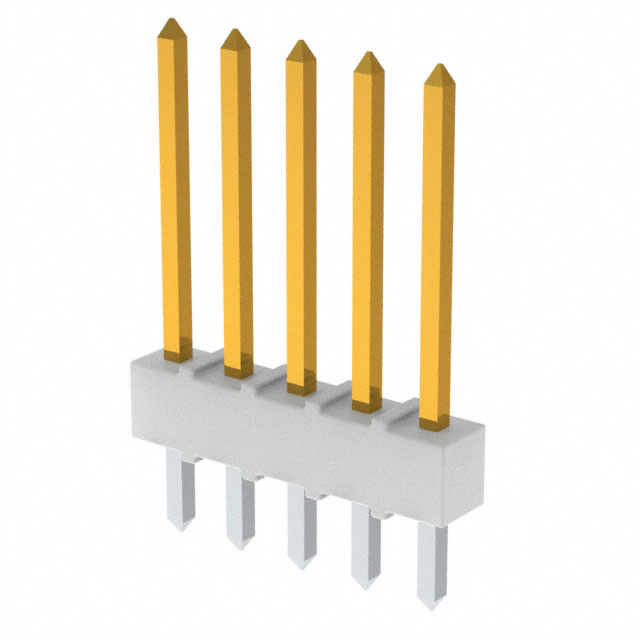

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022102052 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0022102052 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0022102052 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK 100 HDR FLAT VERT 20 AU 5POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 8000 pcs | ||||
|---|---|---|---|---|---|
| $0.163 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0022102052 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | KK 100 HDR FLAT VERT 20 AU 5POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129459 pcs | Data sheet | 10-07 Prod Spec0022102052 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 4030 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.690" (17.53mm) |
| Other Names | 0022-10-2052 002210-2052 22-10-2052 22102052 A-4030-05B241 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.130" (3.30mm) | Insulation Color | White |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 5 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | 0.435" (11.05mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
