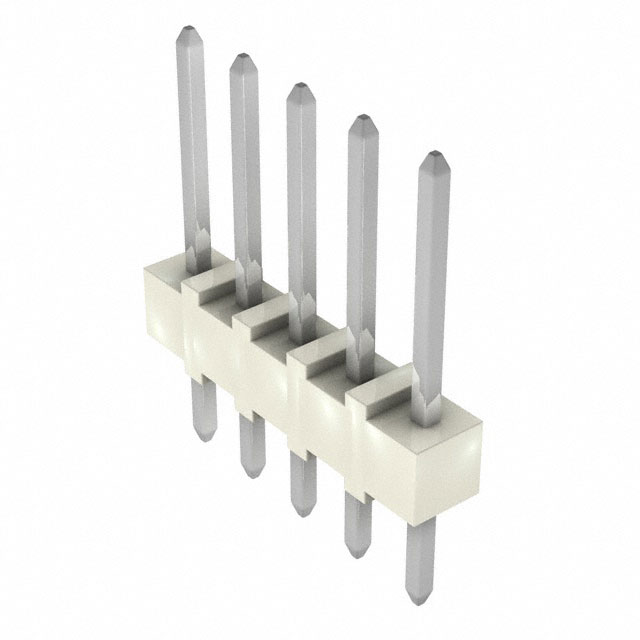

0022031052
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022031052 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0022031052 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0022031052 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.5MM B-TO-B HDR SR VERB 5POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0022031052 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.5MM B-TO-B HDR SR VERB 5POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4673 pcs | Data sheet | 0022031052 Drawing2.50, 2.54mm Centerline Pitch Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | KK 3022 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | 0.559" (14.20mm) |
| Other Names | 0022-03-1052 002203-1052 22-03-1052 22031052 3022-05B |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.130" (3.30mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 5 position 0.098" (2.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.134" (3.40mm) |
| Contact Length - Mating | 0.422" (10.72mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
