0022023083

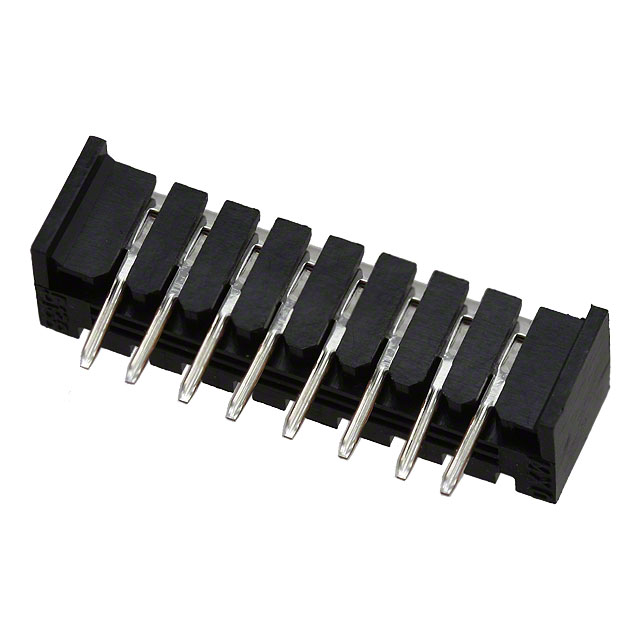

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022023083 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0022023083 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0022023083 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 8POS 2.54MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3600 pcs | ||||
|---|---|---|---|---|---|
| $0.985 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0022023083 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 8POS 2.54MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35027 pcs | Data sheet | 22-02-3xx3 |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Series | 5229 |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 0022-02-3083 0022-02-3083-E 0022023083-E 0022023083-ND 22-02-3083 22-02-3083-E 22-02-3083-ND 22023083 22023083-E 5229-08CPB WM9148 |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 23 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyester | Housing Color | - |
| Height Above Board | 0.256" (6.50mm) | Flat Flex Type | FFC |
| Features | Low Insertion Force (LIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 8 Position FFC Connector Contacts, Vertical, 1 Sided 0.100" (2.54mm) Through Hole | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
