0022013117

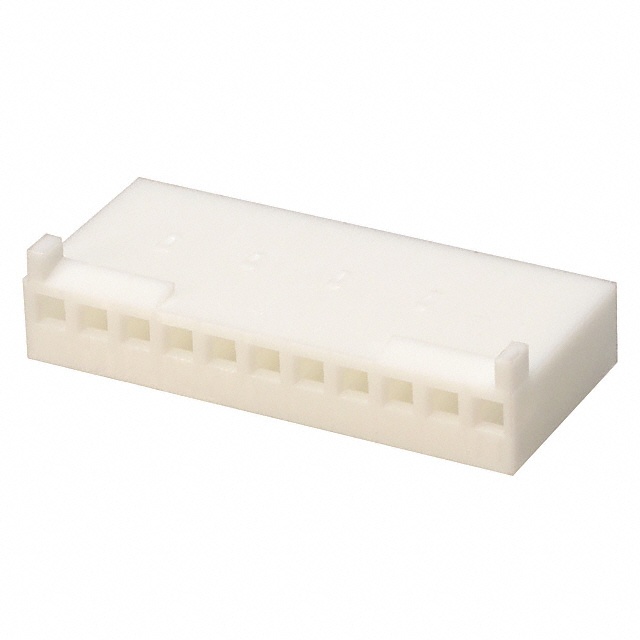

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022013117 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0022013117 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0022013117 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HOUS 11POS .100 W/RAMP/RIB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.197 | $0.184 | $0.166 | $0.147 | $0.141 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.129 | $0.123 | $0.101 | $0.092 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0022013117 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HOUS 11POS .100 W/RAMP/RIB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 236589 pcs | Data sheet | 10-07 Prod Spec22-01-3117Pkg Spec |
| Category | Connectors, Interconnects | Series | KK 2695 |
| Row Spacing | - | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 0022-01-3117 0022-01-3117-P 0022013117-P 22-01-3117 22-01-3117-P 22013117 22013117-P 2695-11RP WM2009 |
| Number of Rows | 1 | Number of Positions | 11 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Polarizing Key |
| Fastening Type | Locking Ramp | Detailed Description | 11 Position Rectangular Housing Connector Receptacle White 0.100" (2.54mm) |
| Contact Type | Non-Gendered | Contact Termination | Crimp |
| Connector Type | Receptacle | Color | White |
