0015978162
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015978162 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015978162 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015978162 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

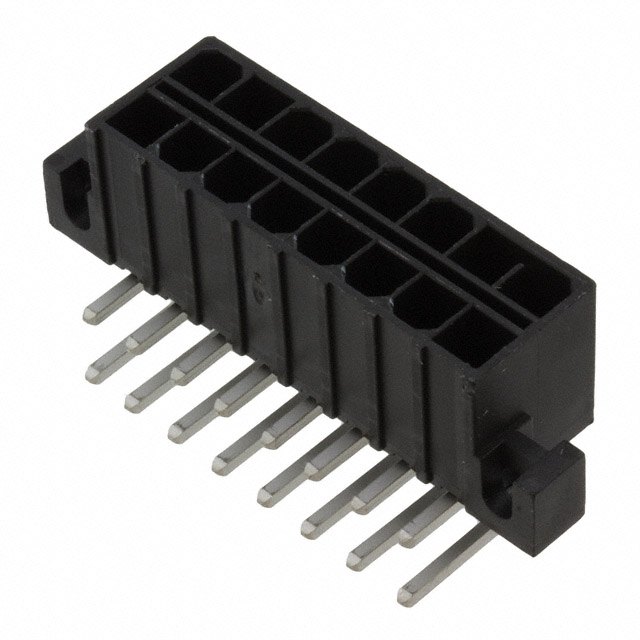

| Description | CONN HEADER 16POS DUAL TIN R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.097 | $1.052 | $0.877 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.745 | $0.636 | $0.57 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015978162 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 16POS DUAL TIN R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66031 pcs | Data sheet | 015978yyy Drawing5556-003 Product SpecMini-Fit® Roadmap |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit TPA 30070 |
| Row Spacing - Mating | 0.217" (5.51mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 001597-8162 01597-8162 15-97-8162 1597-8162 15978162 30070-16A3 WM7202 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.461" (11.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 16 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, Industrial, Telecommunications |
