0015977164
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015977164 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015977164 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015977164 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

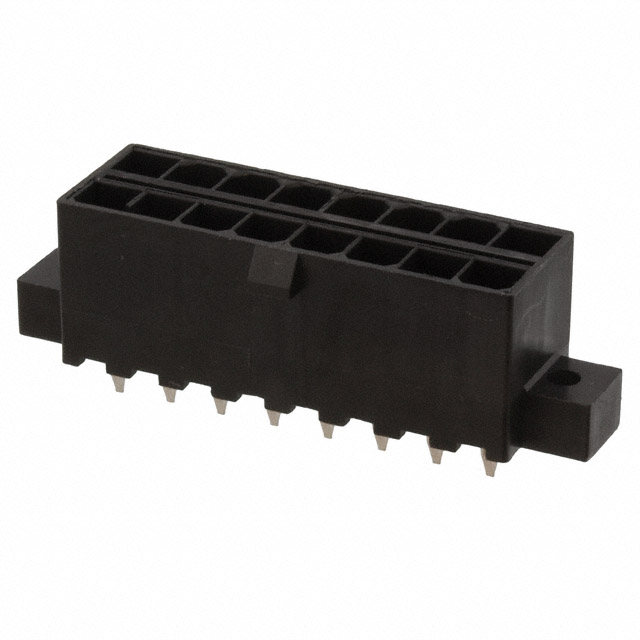

| Description | CONN HEADER 16POS DL VERT GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 150 pcs | 600 pcs | 1050 pcs |
|---|---|---|---|---|---|
| $1.716 | $1.646 | $1.372 | $1.166 | $0.995 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015977164 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 16POS DL VERT GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38757 pcs | Data sheet | 5556-003 Product Spec0015977yyy DrawingMini-Fit® Roadmap |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit TPA 30069 |
| Row Spacing - Mating | 0.217" (5.51mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 001597-7164 01597-7164 15-97-7164 1597-7164 15977164 30069-16A2 WM7200 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.504" (12.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 16 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, Industrial, Telecommunications |
