0015922250

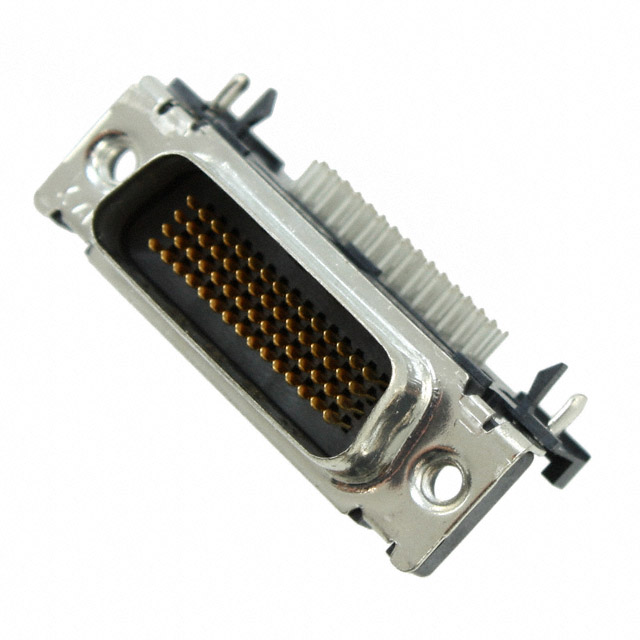

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015922250 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015922250 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015922250 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN D-TYPE PLUG 60POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015922250 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN D-TYPE PLUG 60POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4684 pcs | Data sheet | 15-92-225x |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 40V | Termination | Solder |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | Shell Material, Finish | Steel, Tin Plated |
| Series | Low Force Helix (LFH) 70929 | Packaging | Tube |
| Other Names | 0015-92-2250 0015-92-2250-E 0015922250-E 15-92-2250 15-92-2250-E 15-92-2250-ND 15922250 15922250-E 70929-0001 A-70929-0001 SDA-70929-0001 WM5015 |
Operating Temperature | -20°C ~ 80°C |
| Number of Rows | 4 | Number of Positions | 60 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Flange Feature | Housing/Shell (M3) | Features | Board Lock, Grounding Indents, Shielded |
| Detailed Description | 60 Position D-Type, Board to Board, Matrix Plug, Male Pins Connector | Current Rating | 1A |
| Contact Type | Signal | Contact Material | Phosphor Bronze |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Type, Board to Board, Matrix | Color | Black |
| Backset Spacing | 0.322" (8.18mm) |
