0015917040

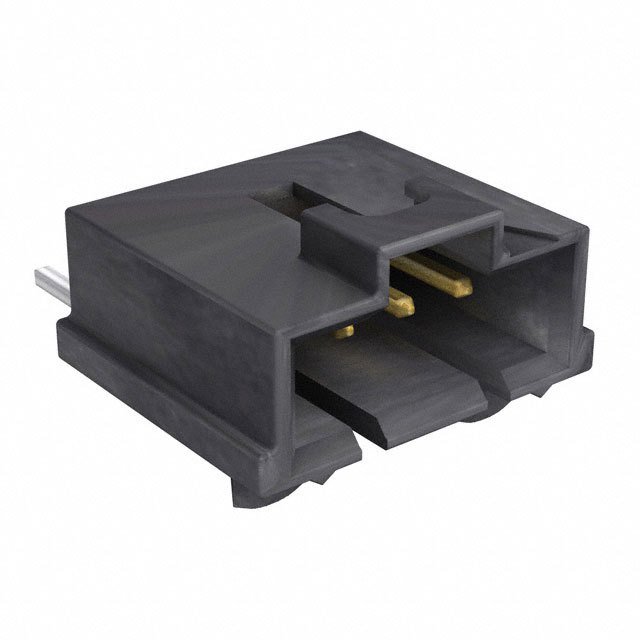

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015917040 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015917040 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015917040 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | SL SMT RA HDR 15 SAU 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | ||
|---|---|---|---|---|---|
| $1.062 | $1.032 | $0.941 | |||
| 1250 pcs | 1750 pcs | 2500 pcs | |||
| $0.88 | $0.85 | $0.819 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015917040 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | SL SMT RA HDR 15 SAU 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41535 pcs | Data sheet | SL Wire-to-Board System00159170x0 Drawing70634-zzzz DrawingSL Series Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SL 70634 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 001591-7040 0015917040-ND 01591-7040 015917040 15917040 70634-0143 WM10457TR |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.215" (5.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
