| Part Number | 0015916142 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

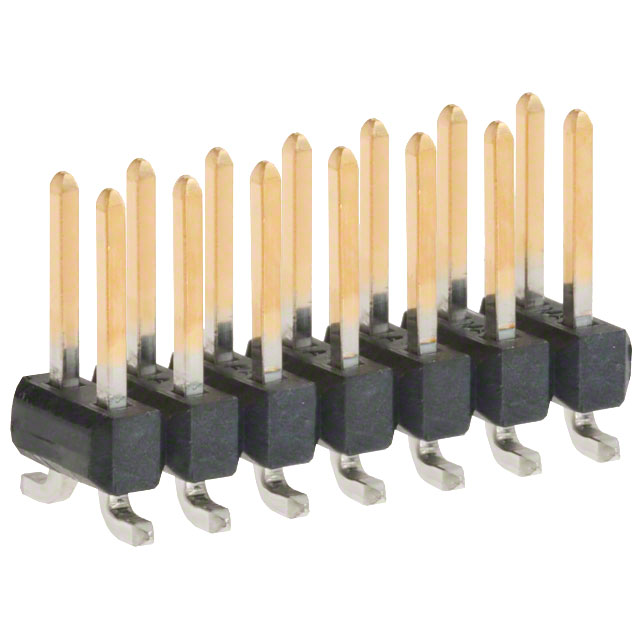

| Description | CGRID SMT BKWY HDR 15 SAU 14CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 330 pcs | 660 pcs | 990 pcs | 1650 pcs | 3300 pcs |
|---|---|---|---|---|---|
| $0.724 | $0.704 | $0.642 | $0.579 | $0.559 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015916142 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CGRID SMT BKWY HDR 15 SAU 14CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57061 pcs | Data sheet | 71308 Series Prod Spec71308, 30340 Pkg Drawing015-91-6zzz Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid 71308 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 0015-91-6142 001591-6142 0015916142-ND 15-91-6142 15916142 71308-1614 WM14926TR |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.050" (1.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 14 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
